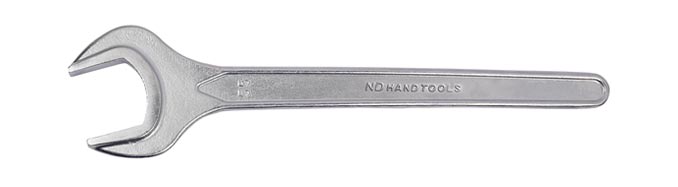

Single Open End Spanners NG-1500


  • Made From Carbon Steel
  • Hardened And Tempered
  • Confirms To Din 894
  • Double Layer Chrome Plated / Black Phosphated

mm Weight Length±2 (mm) IB/OB Art No.
6 8 73 100/800 1500.6
7 10 78 100/800 1500.7
8 13 94 100/800 1500.8
10 20 106 100/800 1500.10
11 25 112 100/400 1500.11
12 30 124 100/400 1500.12
13 40 132 100/400 1500.13
14 45 140 100/400 1500.14
15 50 145 100/400 1500.15
17 70 159 50/200 1500.17
18 65 165 50/200 1500.18
19 90 170 50/200 1500.19
22 110 193 50/200 1500.22
24 140 217 25/100 1500.24
25 140 217 25/100 1500.25
30 275 263 10/80 1500.30
32 310 275 10/80 1500.32
34 360 290 10/60 1500.34
36 410 305 10/60 1500.36
38 410 305 10/60 1500.38
41 620 344 10/40 1500.41
46 820 380 5/30 1500.46
50 1000 413 5/20 1500.50
55 1250 459 5/20 1500.55
60 1550 494 5/10 1500.60
65 1900 528 5/10 1500.65
70 2150 572 5/10 1500.70
75 2800 610 2/8 1500.75
80 3100 645 2/8 1500.80
