Combination Spanners NG-800

  • Home
  • Combination Spanners NG-800

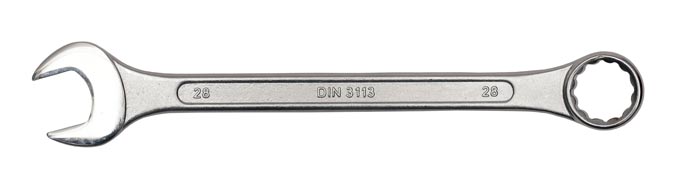

Combination Spanners NG-800

Recessed Panel

  • Made From Carbon Steel / Crv Steel
  • Recessed Panel
  • Double Layer Chrome Plated / Matt / Head Polished
  • Hardened And Tempered
  • Confirms To Din 3113a

mm ww Weight Length±2 (mm) IB/OB Art No.
6 1/4 17 100 100/800 800.6
7 - 20 110 100/800 800.7
8 5/16 25 120 100/600 800.8
9 - 30 130 100/600 800.9
10 3/8 35 140 100/400 800.10
11 7/16 45 150 50/300 800.11
12 - 50 160 50/300 800.12
13 1/2 60 170 50/300 800.13
14 9/16 75 180 50/200 800.14
15 - 90 190 50/200 800.15
16 5/8 100 200 50/200 800.16
17 11/16 115 210 50/200 800.17
18 - 135 220 25/150 800.18
19 3/4 140 230 25/150 800.19
20 - 160 240 25/100 800.20
21 13/16 180 250 25/100 800.21
22 7/8 200 260 25/100 800.22
23 - 215 270 10/80 800.23
24 15/16 240 280 10/80 800.24
25 1 270 290 10/60 800.25
26 - 300 300 10/60 800.26
27 1.1/16 330 310 10/60 800.27
28 1.1/8 400 320 10/60 800.28
29 - 450 330 10/40 800.29
30 1.3/16 475 340 10/40 800.30
32 1.1/4 540 360 10/40 800.32

Set’s Code Contents IB/OB
NG800/6M 8, 10, 12, 13, 14, 17 10/40
NG800/8M 8, 9, 10, 11, 13, 14, 17, 19 5/30
NG800/12M 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 5/20
NG800/14M 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24 4/16
NG800/26M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21,
22, 23, 24, 25, 26, 27, 28, 29, 30, 32 (SAE)		 1/4
NG800/5A 3/8,7/16,1/2,9/16,5/8 10/40
NG800/11A 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8 5/20
NG800/12A 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8,1 3/12
