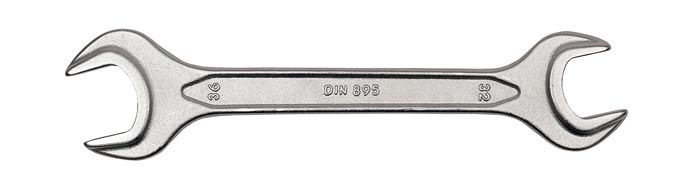

Double Open End Spanners NG-1600


  • Made From Chrome Vanadium Steel ‘31 CRV3' & Carbon Steel
  • Hardened And Tempered
  • Confirms To Din 895
  • Double Layer Chrome Plated / Black Phosphated

mm Weight Length±2 (mm) IB/OB Art No.
6x7 10 85 100/800 1600.6
8x9 15 100 100/800 1600.8
10x11 30 110 100/800 1600.10
12x13 40 125 50/300 1600.12
13x16 60 140 50/300 1600.13
14x15 60 140 50/200 1600.14
15x16 70 140 50/200 1600.15
16x17 80 160 50/200 1600.16
16x18 90 160 50/200 1600.16a
18x19 100 180 25/150 1600.18
18x21 125 180 25/150 1600.18a
20x22 135 185 25/100 1600.20
21x23 170 210 25/100 1600.21
21x24 175 210 25/100 1600.21a
24x26 250 225 20/80 1600.24
24x27 270 255 15/60 1600.24a
26x28 340 235 15/60 1600.26
27x30 400 250 15/60 1600.27
27x32 400 250 15/60 1600.27a
30x32 400 250 10/40 1600.30
30x34 480 250 10/40 1600.30a
32x36 520 285 10/40 1600.32
36x41 680 335 10/40 1600.36
41x46 950 370 5/30 1600.41
46x50 1200 405 5/20 1600.46
50x55 1550 445 3/12 1600.50
55x60 1850 480 3/12 1600.55
65x70 2700 560 2/8 1600.65
75x80 4200 635 2/6 1600.75
