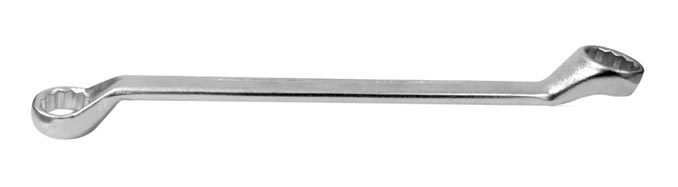

Ring Spanners NG-1200

Ring Spanners NG-1200

Elliptical Rough Matt

  • Made from Chrome Vanadium Steel '31 CRV3'
  • Elliptical Pattern Oval Body
  • Chrome Plated Rough Matt Finish
  • Body Finish
  • Forging Finish
  • Hardened and Tempered
  • Confirm to IS : 2029

mm ww Weight Length±2 (mm) IB/OB Art No.
6x7 1/4x5/16 55 175 50/400 1200.6
8x9 6/16x3/8 70 185 50/200 1200.8
10x11 3/8x7/16 90 198 50/200 1200.10
12x13 7/16x1/2 115 215 50/200 1200.12
14x15 1/2x9/16 150 228 25/150 1200.14
16x17 5/8x11/16 190 246 25/100 1200.16
18x19 - 235 268 25/100 1200.18
20x22 13/16x7/8 315 292 20/80 1200.20
21x23 13/16x15/16 350 315 15/60 1200.21
24x27 15/16x1.1/16 450 328 10/40 1200.24
25x28 1x1.1/8 500 342 10/40 1200.25
30x32 1.1/16x1.1/4 630 370 10/40 1200.30

Set’s Code Contents IB/OB
NG1200/6M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 4/24
NG1200/8M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 4/16
NG1200/12M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22
21x23, 24x27, 25x28, 30x32
2/8
