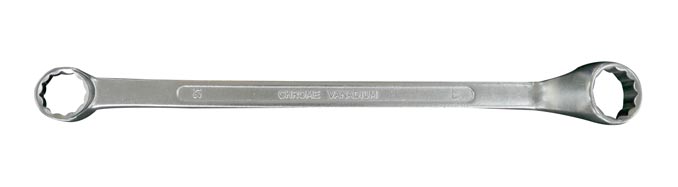

Ring Spanners NG-1000

  • Home
  • Ring Spanners NG-1000

Ring Spanners NG-1000

Recessed Panel

  • Made From Carbon Steel / Crv Steel
  • Recessed Panel
  • Chrome Plated / Matt / Head Polished
  • Confirms To Din 838
  • Hardened And Tempered

mm ww Weight Length±2 (mm) IB/OB Art No.
6x7 1/4x5/16 55 170 50/400 1000.6
8x9 6/16x3/8 60 185 50/200 1000.8
10x11 3/8x7/16 80 195 50/200 1000.10
12x13 7/16x1/2 110 210 50/200 1000.12
14x15 1/2x9/16 145 225 25/150 1000.14
16x17 5/8x11/16 190 245 25/100 1000.16
18x19 - 235 268 25/100 1000.18
20x22 13/16x7/8 285 295 20/80 1000.20
21x23 13/16x15/16 350 296 15/60 1000.21
24x27 15/16x1.1/16 400 306 10/40 1000.24
25x28 1x1.1/8 455 328 10/40 1000.25
30x32 1.1/16x1.1/4 630 337 10/40 1000.30

Set’s Code Contents IB/OB
NG1000/6M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 4/24
NG1000/8M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 5/20
NG1000/12M 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22
21x23, 24x27, 25x28, 30x32		 2/8
