Combination Spanners NG-700

  • Home
  • Combination Spanners NG-700

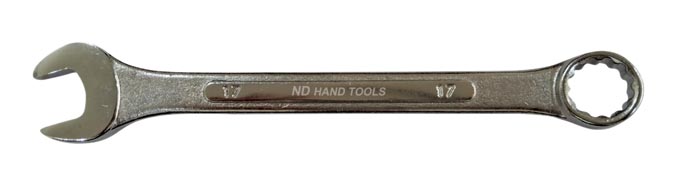

Combination Spanners NG-700

Raised Panel

  • Made From Crv Steel / Carbon Steel
  • Hardened And Tempered
  • Chrome Plated / Head And Panel Polished
  • Raised Panel
  • Matt Finish

mm ww Weight Length±2 (mm) IB/OB Art No.
6 1/4 25 96 100/800 700.6
7 - 25 98 100/800 700.7
8 5/16 30 110 100/600 700.8
9 - 35 115 100/600 700.9
10 3/8 40 127 100/400 700.10
11 7/16 50 133 50/300 700.11
12 - 60 138 50/300 700.12
13 1/2 70 145 50/300 700.13
14 9/16 80 165 50/200 700.14
15 - 100 176 50/200 700.15
16 5/8 115 185 50/200 700.16
17 11/16 130 205 50/200 700.17
18 - 150 205 25/100 700.18
19 3/4 180 235 25/100 700.19
20 - 190 235 25/100 700.20
21 13/16 215 259 25/100 700.21
22 7/8 225 260 25/100 700.22
23 - 300 260 10/80 700.23
24 15/16 310 280 10/80 700.24
25 1" 340 290 10/60 700.25
26 - 340 290 10/60 700.26
27 1.1/16 420 315 10/60 700.27
28 1.1/8 420 315 10/60 700.28
29 - 590 365 10/40 700.29
30 1.3/16 650 365 10/40 700.30
32 1.1/4 730 380 10/40 700.32
33 1.5/16 750 435 5/20 700.33
34 - 860 435 5/20 700.34
36 - 990 465 5/20 700.36
38 1.3/8 1160 475 5/20 700.38
41 1.7/16 1320 505 5/20 700.41
42 1.1/2 1420 505 4/16 700.42
44 1.5/8 1720 540 4/16 700.44
45 1.3/4 1720 540 3/12 700.45
46 1.3/16 1720 540 3/12 700.46
48 1.7/8 2040 570 2/8 700.48
50 2" 2170 605 2/8 700.50

Set’s Code Contents IB/OB
NG700/6M 8, 10, 12, 13, 14, 17 10/40
NG700/8M 8, 9, 10, 11, 13, 14, 17, 19 5/30
NG700/12M 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 5/20
NG700/14M 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24 4/16
NG700/26M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21,
22, 23, 24, 25, 26, 27, 28, 29, 30, 32		 1/4
NG700/8M 33, 34, 35, 36,38, 41, 46, 50 (SAE) 1/2
NG700/05A 3/8,7/16,1/2,9/16,5/8 10/40
NG700/11A 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8 5/20
NG700/12A 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8,1" 4/16
