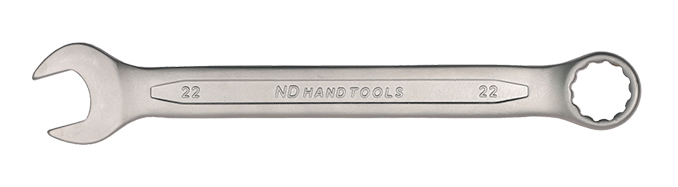

Combination Spanners NG-3400

Press Panel

  • Made From Chrome Vanadium Steel '31 Crv3'
  • Hardened And Tempered
  • Double Layer Chrome Plated / Satin / Matt Finish
  • Confirms To Din 3113a

mm ww Weight Length±2 (mm) IB/OB Art No.
6 1/4 20 100 100/800 3400.6
7 - 25 110 100/800 3400.7
8 5/16 30 115 100/600 3400.8
9 - 35 125 100/600 3400.9
10 3/8 40 135 100/400 3400.10
11 7/16 45 145 50/300 3400.11
12 - 60 155 50/300 3400.12
13 1/2 70 165 50/300 3400.13
14 9/16 85 171 50/200 3400.14
15 - 95 185 50/200 3400.15
16 5/8 110 195 50/200 3400.16
17 11/16 130 210 50/200 3400.17
18 - 145 220 25/100 3400.18
19 3/4 165 230 25/100 3400.19
20 - 180 240 25/100 3400.20
21 13/16 190 245 25/100 3400.21
22 7/8 210 248 25/100 3400.22
23 - 245 260 10/80 3400.23
24 15/16 260 270 10/80 3400.24
25 1" 290 282 10/60 3400.25
26 - 310 290 10/60 3400.26
27 1.1/16 340 300 10/60 3400.27
28 1.1/8 380 310 10/60 3400.28
29 - 470 330 10/40 3400.29
30 1.3/16 470 330 10/40 3400.30
32 1.1/4 530 350 10/40 3400.32
33 1.5/16 730 380 5/20 3400.33
34 - 730 380 5/20 3400.34
35 1.3/8 730 380 5/20 3400.35
36 1.7/16 850 400 5/20 3400.36
38 1.1/2 850 400 5/20 3400.38
41 1.5/8 1150 452 4/16 3400.41
44 1.3/4 1580 497 3/12 3400.44
46 1.3/16 1600 497 3/12 3400.46
48 1.7/8 2000 540 2/8 3400.48
50 2" 2000 540 2/8 3400.50

Set’s Code Contents IB/OB
NG3400/6M 8, 10, 12, 13, 14, 17 10/40
NG3400/8M 8, 9, 10, 11, 13, 14, 17, 19 5/30
NG3400/12M 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 5/20
NG3400/14M 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 24 4/16
NG3400/26M 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32		 1/4
NG3400/8M 33, 34, 35, 36,38, 41, 46, 50 (SAE) 1/2
NG3400/05A 3/8,7/16,1/2,9/16,5/8 10/40
NG3400/11A 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8 5/20
NG3400/12A 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16,3/4,13/16,7/8,1" 4/16
